TH3-2

  • 产品型号:TH3-2
  • 订货号:611883
  • 品牌: Mecatraction中国总代理
  • 标准:
  • 最小包装量:1
  • 单位:
  • 应用范围:Crimping of perinsulated terminals from 1.0 to 6.0 mm²

商品介绍

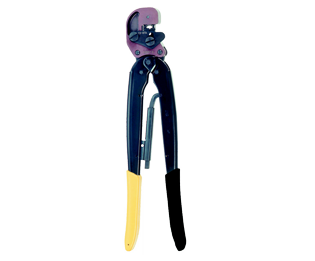

Hand crimping tool for preinsulated products
Strong and practical steel tools
High quality crimping by linear movement of dies
Adjustable crimping of cable insulation by a pin
Safety ratchet
Positioner stopper ATH23
Crimping dies identification reference mark : 3 dots
Delivered in individual box with control and instruction leaflet
Length : 290 mm - Weight : 0.905 Kg.
Handles colour : TH3 = 1 yellow and one white - TH3-2 : one yellow and one black
TH3 : max. insulating diameter : 6.8 mm
Crimping of white terminals 51190 series and disconnects from 1 to 2.5 mm²
Crimping of yellow terminals C3P  serties and disconnects from 2.6 to 6 mm²
TH3 : max. insulating diameter : 8.8 mm
Crimping of black terminals 51190 series and disconnects from 1 to 2.5 mm²
Crimping of yellow black stripped terminals C3P  serties and disconnects from 2.6 to 6 mm²
Complementary accessory :
PGH3 : go-no go gauge
